Semi-Auto Circular Saws

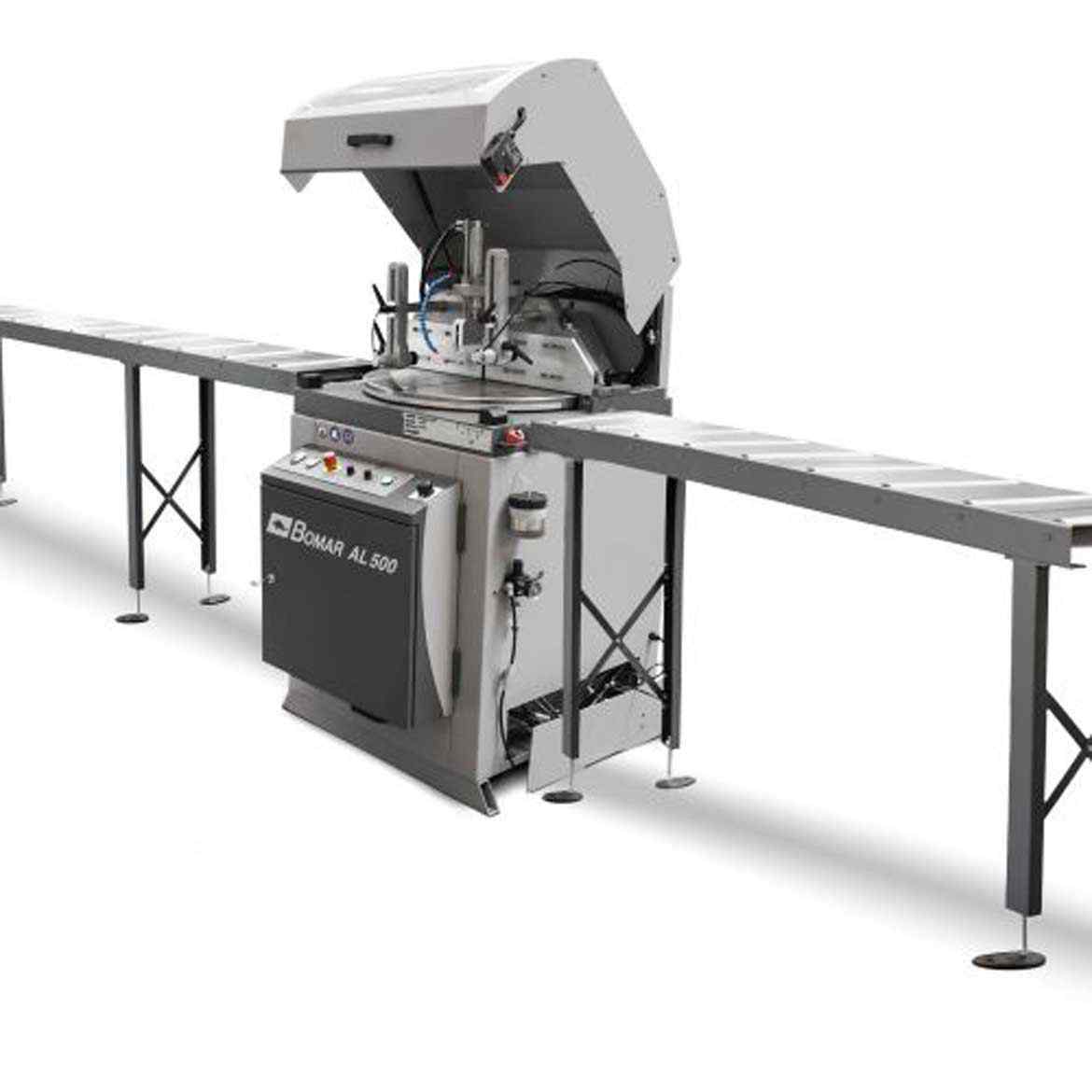

Semi-Automatic Non Ferrous Upstroking Saw. Manual Mitre facility and 4 point clamping as standard.

Very heavy duty
Vibration free cutting
Large work table
Precise variable control of the blade feed
Blade rises from beneath saw bed and fully retracts at end of cut
Mitre cutting by rotating the saw bed up to 60° left and right
2 vertical & 2 horizontal pneumatic clamps securely hold irregular shaped material
Adjustable back fence to give increased capacity
Cutting height set by variable control
Mist spray lubrication with adjustable level
Noise reducing, interlocked safety hood encloses cutting area
Input & output extensions guards mounted on the hood, inhibit access to the blade
Large door at the front of the machine for easy blade change and cleaning
Large, removable swarf tray

Manufacturer	Bomar
Machine Type	Circular Saw
Operation Type	Semi-Automatic
Material Types	Aluminium, Non-Ferrous, PVC, Sections
Material	Section
Blade Size	500 x 30 x 4.0
Blade Speed	2,000 RPM (51 m/sec)
Table Height	1067mm
Motor	4kW
Weight	500

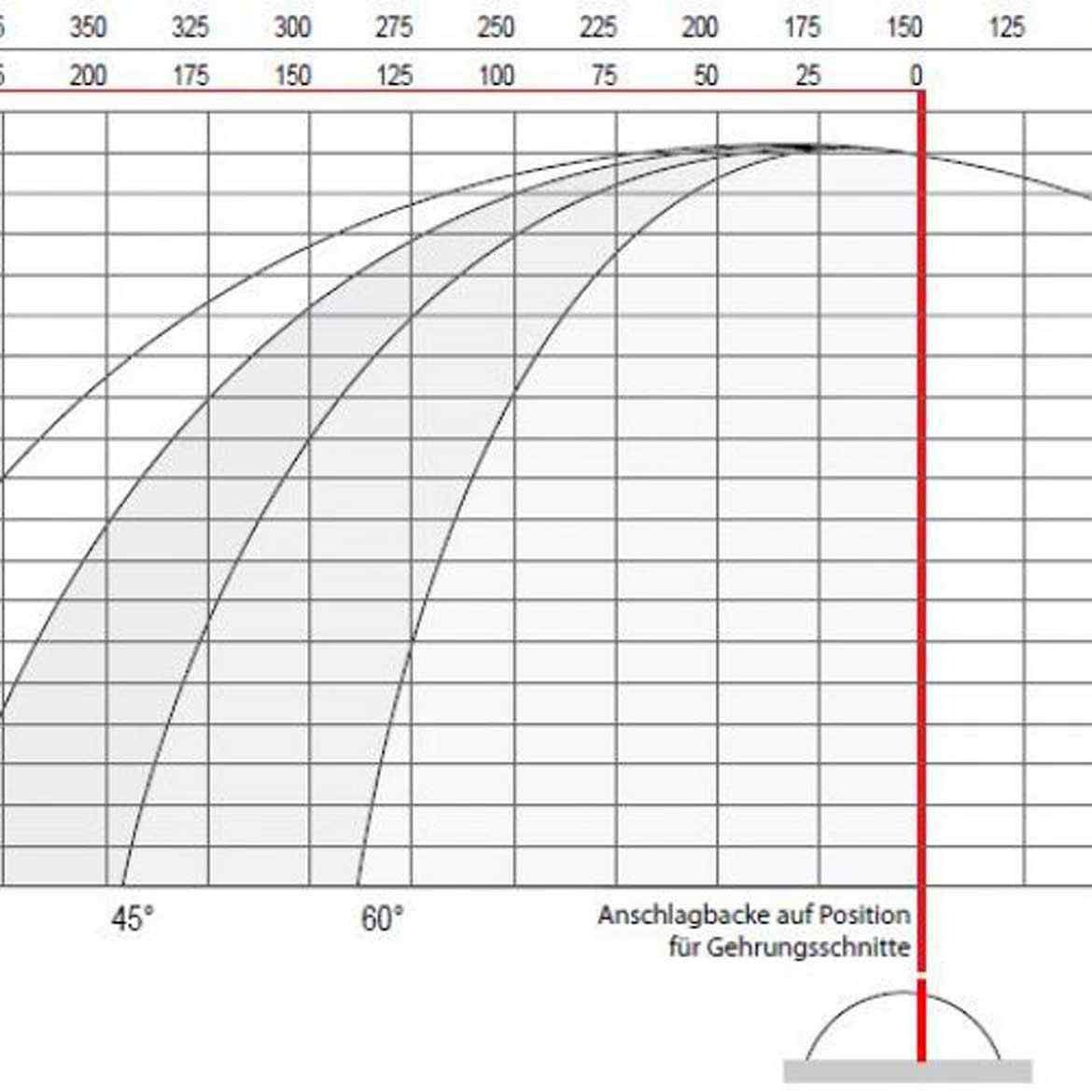

	90°	45° Left	45° Right	60° Left	60° Right
Round Section (mm)	170		150	120	120
Rectangular Section Horizontal (mm)	395 x 70		180 x 50	120 x 70	120 x 70
Rectangular Section Vertical (mm)	90 x 175		80 x 170	55 x 170	55 x 170
Square Section (mm)	150 x 150		130 x 130	115 x 115	105 x 105
