AKYAPAK AFD 10
AKYAPAK AFD 10

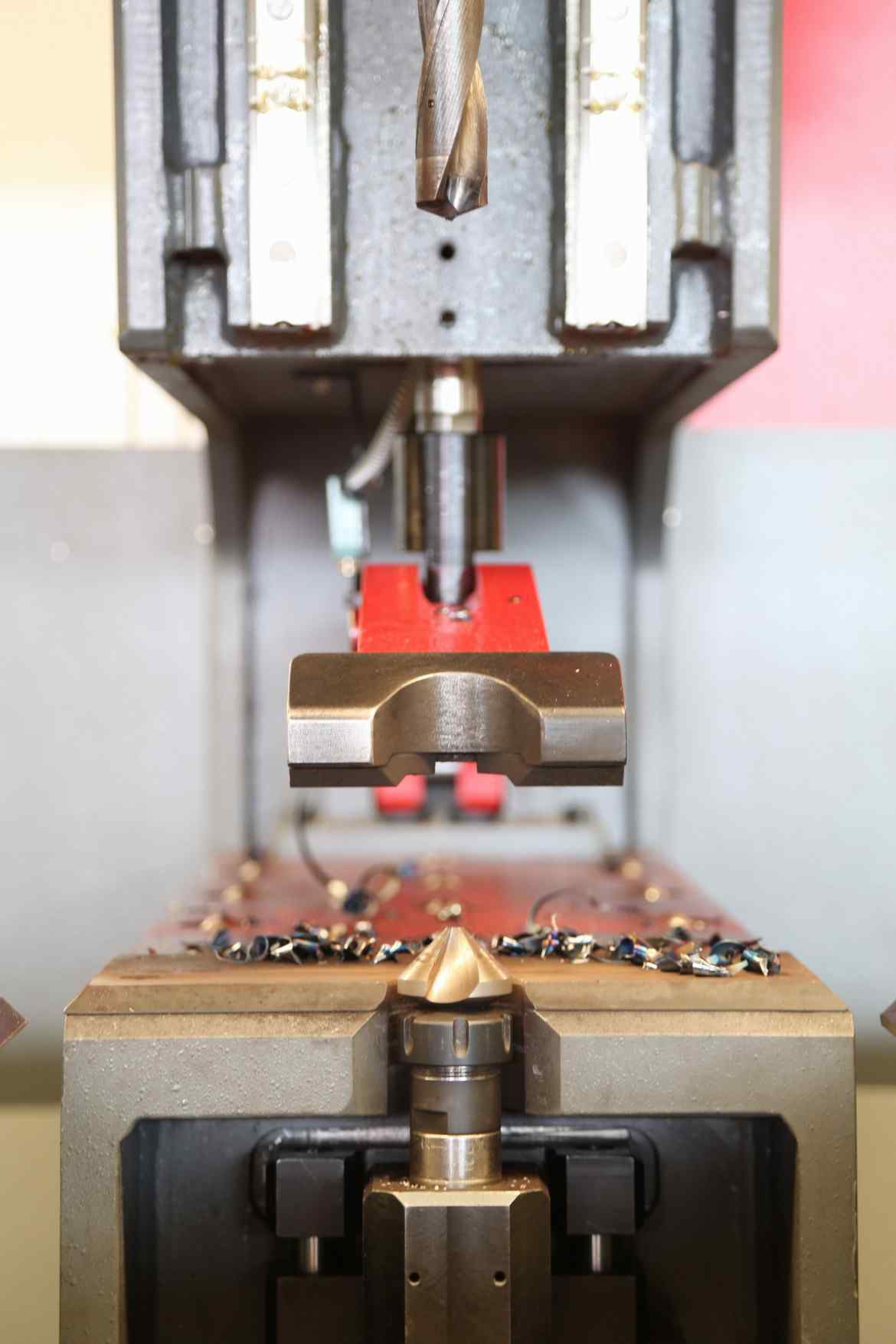

AKYAPAK AFD 10 - Image 2

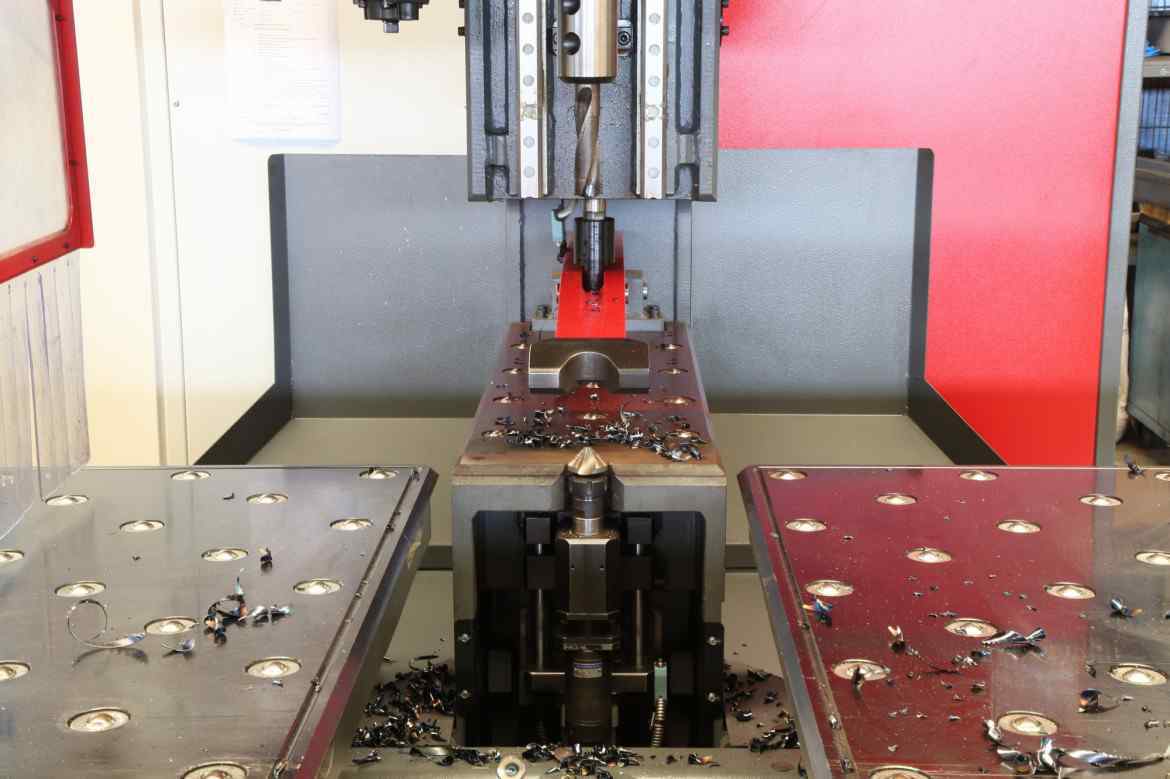

AKYAPAK AFD 10 - Image 3

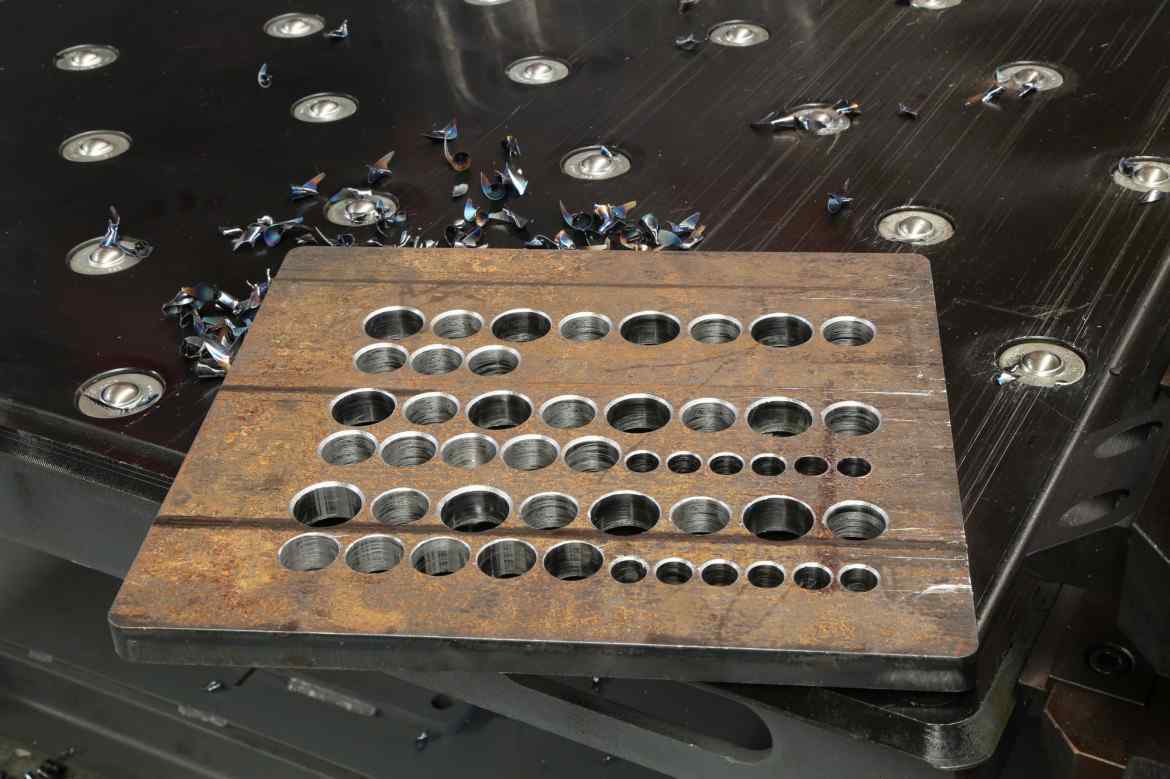

AKYAPAK AFD 10 - Image 4

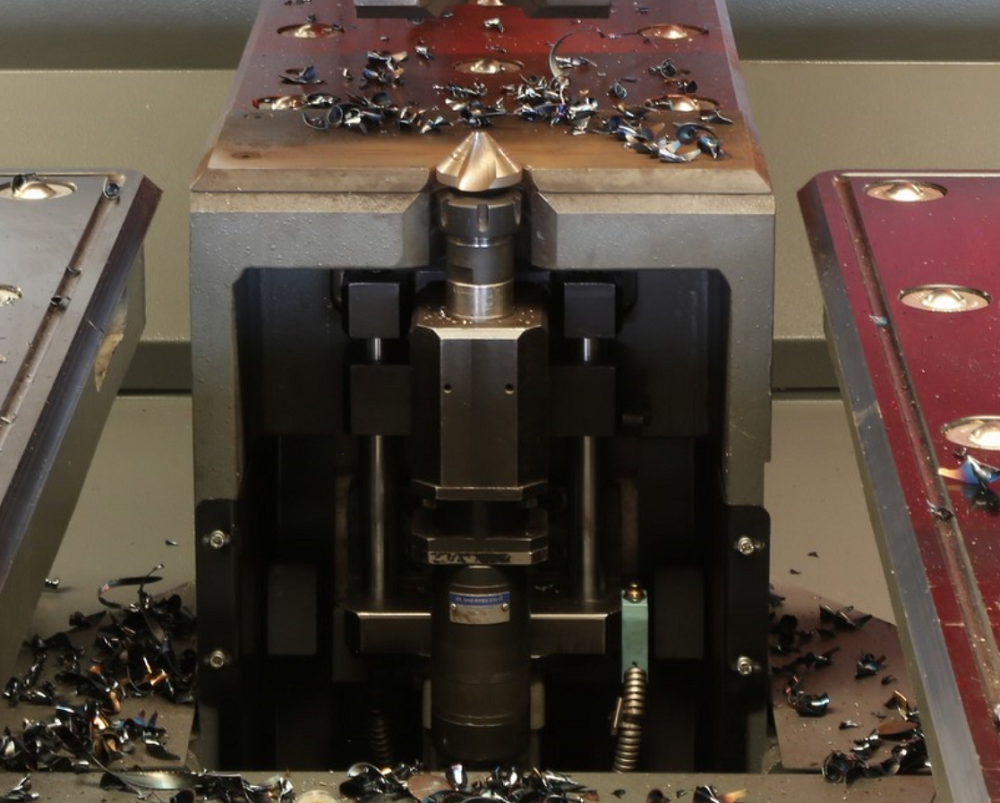

AKYAPAK AFD 10 - Image 5
AKYAPAK AFD 10 - Image 6
Machine Subcategory

CNC plate drilling machine

Overview

The AKYAPAK AFD10 is a heavy duty CNC plate drilling machine suitable for flanges and steel plates from 6mm to 80mm thick.

Write, or upload an existing program file to automatically process your parts, with automatic tool change for different operations such as drilling, tapping, scribing etc, in the same material.

Standard Specification
  • Single spindle CNC drilling machine
  • Drilling - marking - tapping - countersinking - scribing - milling
  • Mitsubishi or Siemens HMI
  • 22kW motor (nominal)
  • 280Nm spindle torque
  • 3,000 rpm max
  • Automatic tool changer (16 tool positions)
  • Chip conveyor
  • Safety barrier
  • Servo motor and ball screw CNC positioning table
  • Maximum capacity
  •  :- 1000x1500x64mm
  •  :- 1000x1190x80mm
  •  :- 795x1500x80mm
  • Adjustable hydraulic clamps
  • Plate thickness minimum - 6mm
  • Maximum material weight - 750 kgs
  • Maximum drilling diameter - 40mm standard
  • Tapping minimum - M10, Maximum - M24
  • Automatic machine lubrication system
  • Internal tool lubrication
Get in touch +44 (0)1536 410999
AKYAPAK AFD 10 Technical Specifications

Notice: Function is_internal_meta_key was called incorrectly. Generic add/update/get meta methods should not be used for internal meta data, including "_weight". Use getters and setters. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/plugins/woocommerce/templates/single-product.php'), wc_get_template_part, load_template, require('/plugins/woocommerce/templates/content-single-product.php'), do_action('woocommerce_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, single_product_custom_template, prosaw_render_technical_specifications, prosaw_render_meta_row, prosaw_get_spec_value, WC_Data->get_meta, WC_Data->is_internal_meta_key, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.2.0.) in /home/prosaw/public_html/wp-includes/functions.php on line 6260
Manufacturer Akyapak
Machine Type Metal Forming
Table Size 1500x1000mm
Weight 7250
Material Type(s) Solid
SKU: 212 Category:
Download Datasheet

Download the datasheet for the AKYAPAK AFD 10
